Technical specifications for TSXSAZ10

Description

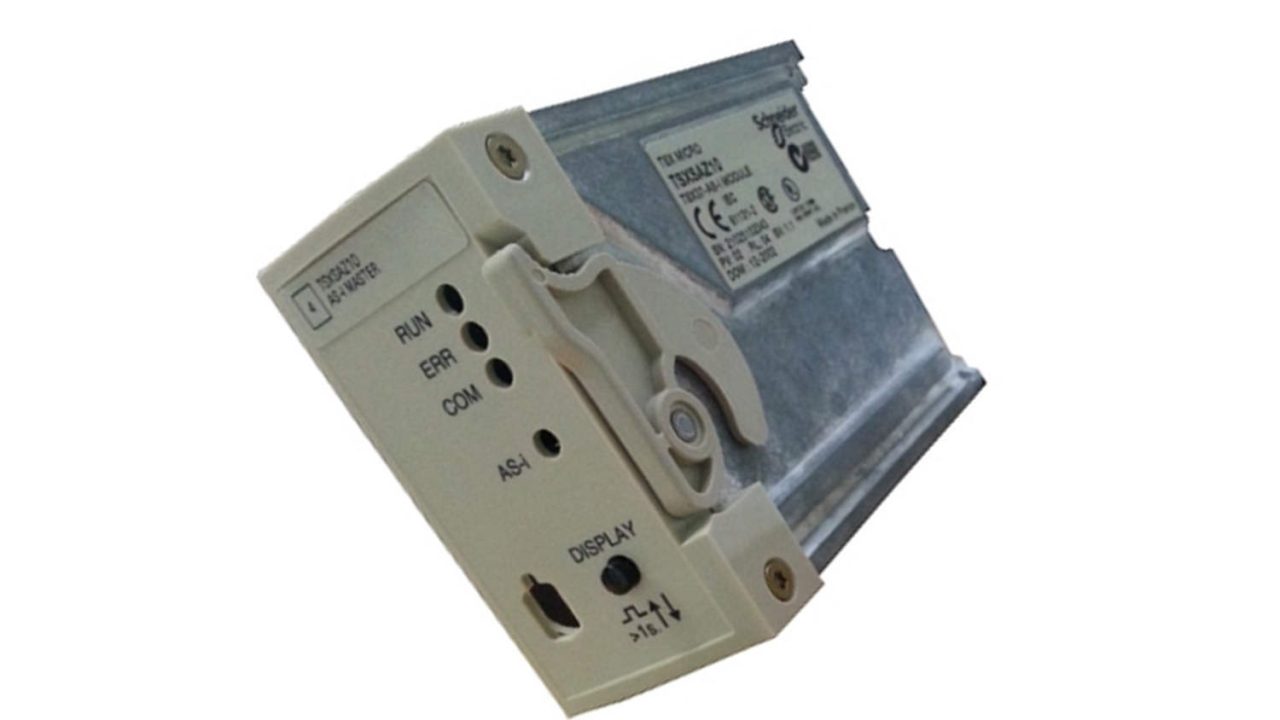

The Schneider Electric TSXSAZ10 is designed as an AS-Interface master module for integration within the TSX Micro PLCs series. With a capacity to manage up to 31 server devices, it enables seamless communication and control in automation setups. It handles a total of 4 discrete inputs and 4 discrete outputs, facilitating straightforward I/O management.

Technical specifications for TSXSAZ10
Manufacturer Schneider Electric
Product Line TSX Micro PLCs
Part Number TSXSAZ10
EAN 3389110738070
Weight 1.00 lbs (0.45 kg)
Type AS-Interface master module
Compatible Cabling System AS-Interface cabling system
Addressing Option Standard
Number of Server Devices 31 devices
Discrete Input Capacity 4 inputs
Discrete Output Capacity 4 outputs
IP Rating IP20
Operating Temperature 0 to 60 degrees Celsius
Storage Temperature -25 to 70 degrees Celsius
Power Supply From host platform
Relative Humidity 5% to 95%, non-condensing
Range of Product
Modicon Premium Automation platform
Product or Component Type
AS-Interface master module
Complementary
Range Compatibility
AS-Interface cabling system
Actuator sensor interface profile [AS-i]
M2
AS-i version
V1
Addressing
Standard
Number of server device(s)
31, standard
Type of connectable interfaces
Discrete I/Os (4I/4O)
Electrical connection
Terminal block AS-Interface line
Supply
Via power supply integrated into the host platform of the module
Environment
Product Certifications
AS-Interface No 12001
Standards
IEC 60068-2-6, Fc tests
IEC 60068-2-27, Ea tests
IEC 61131-2
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
IP Degree of Protection
IP20
Ordering and shipping details
Category
US1PC1422556
Discount Schedule
PC14
GTIN
3389110738070
Returnability
No
Packing Units
Unit Type of Package 1
PCE
Nbr. of units in pkg.
1
Package 1 Height
2.2 in (5.5 cm)
Package 1 Width
2.2 in (5.7 cm)
Package 1 Length
10.04 in (25.5 cm)
Package weight(Lbs)
11.4 oz (324.0 g)

Description
The TSXSAZ10 from Schneider Electric acts as an AS-Interface master module in the TSX Micro PLCs series. It provides essential connectivity for automation systems utilizing the AS-Interface cabling framework. The module can address a maximum of 31 devices, making it effective for medium-sized setups. With 4 discrete inputs and 4 discrete outputs, it easily accommodates a range of control and signaling tasks.

Designed with an IP20 rating, this unit is best suited for environments where direct exposure to dust and moisture is limited. It functions within an operating temperature spectrum of 0 to 60 degrees Celsius, ensuring stability in various conditions. In terms of storage, it withstands lower temperatures down to -25 degrees Celsius and can tolerate up to 70 degrees Celsius. The humidity range for operational effectiveness is generous, from 5% to 95% relative humidity, provided that conditions remain non-condensing.

This module is powered from the host platform, streamlining installation and reducing the need for external power supplies, enhancing system integration and efficiency. Overall, the TSXSAZ10 serves as a reliable component in enhancing AS-Interface setups, combining flexibility and ease of use.
