Schneider Electric · Circuit Protection

Technical specifications for JDL36225

Manufacturer: Schneider Electric Part Number: JDL36225

Schneider Electric Square D JDL36225

12-month warranty
New Surplus
Available on request

Availability & pricing

Condition	Price	Stock / lead time	Action
New Surplus	On request	Available on request

Description

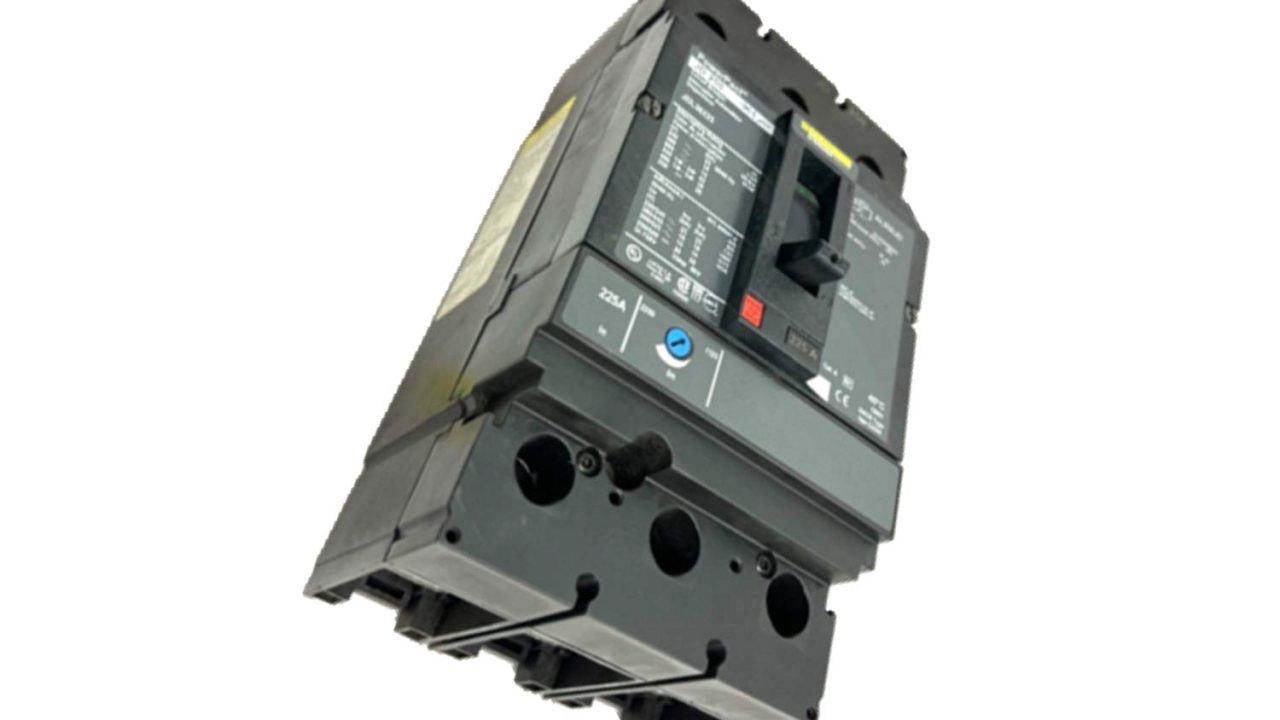

Schneider Electric Square D JDL36225

MOLDED CASE CIRCUIT BREAKER
POWERPACT J
UNIT MOUNT
THERMAL MAGNETIC
250 AMP
3 POLE
14KA
600 VAC
50/60 HZ
COPPER LUGS
CONTINUOUS CURRENT RATING: 80 %

Square D JDL36225 Molded Case Circuit Breakers 3P 225A Thermal Magnetic PowerPact J-Frame Series

Product Attribute
Attribute Value
Actuator Type Toggle
Manufacturer SQUARE D
Current Rating 225 A
Dimensions 7.52 in H X 4.09 in W X 0.98 in L X 3.39 in D
Family Name PowerPact J Family
Frame Type J Frame
Manufacturer Part Number JDL36225
Mounting Type Panel Mount
Number of Poles 3
Series PowerPact J-Frame Series
Terminal Type Line: Lug – Load: Lug
Trip Time Adjustable Trip sec
Type Thermal/Magnetic
UPC Code 785901623175
Voltage Rating 600 V
Wire Size 350 KCMIL
Weight 5 lb

Frequently asked questions

What is the JDL36225?

Schneider Electric JDL36225 is an industrial automation component we supply from surplus and refurbished stock. Confirm the exact configuration, condition and lead time with our team before purchase.

Is the JDL36225 in stock, and what is the lead time?

We list the JDL36225 as in stock in New Surplus condition. Request a quote for current availability, pricing and confirmed lead time — most items ship within 1–3 business days.

Do you provide a datasheet for the JDL36225?

Where available, the product page links the original manufacturer datasheet (PDF). Use the request-a-quote form to receive the full documentation pack and compliance information.

Can the JDL36225 be cross-referenced to an equivalent?

Many automation parts have equivalents or legacy replacements. Send us the JDL36225 together with your application details and we will confirm compatibility and alternatives.
