Technical specifications for ABE7CPA21

Description

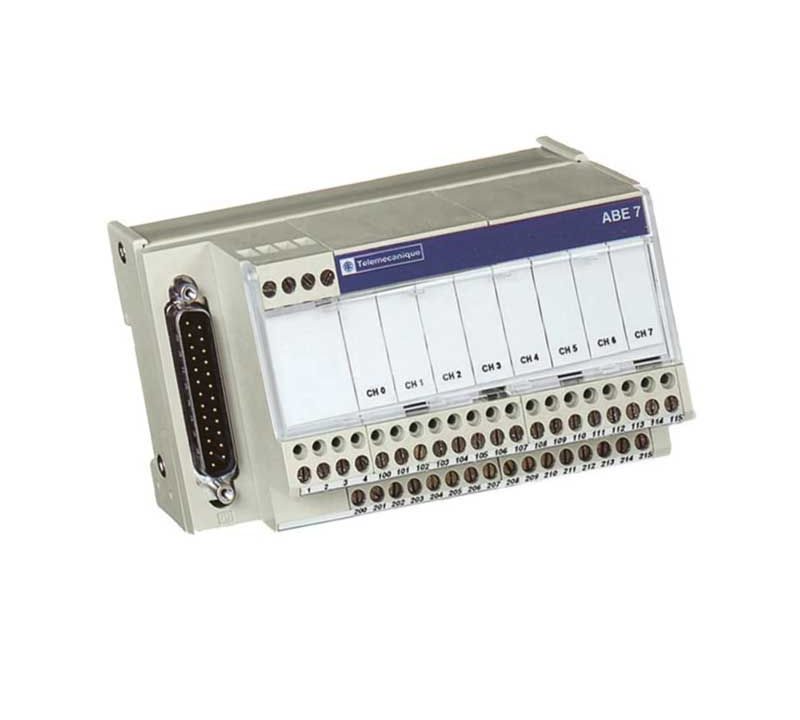

The Schneider Electric ABE7CPA21 is a connection sub-base designed for use with counter and analog channels. Rated for four channels, the unit features IP20 protection and operates optimally at temperatures from 0°C to 60°C. It offers compatibility with the Modicon Premium TSXAEY420 and TSXASY410 PLCs, making it suitable for various applications.

Technical specifications for ABE7CPA21
Manufacturer Schneider Electric
Product Type Connection sub-base for counter and analog channels
Product Line Modicon
Part Number ABE7CPA21
EAN 3389110836196
Weight 0.19 lbs (0.09 kg)
Number of Channels 4 channels
Protection Rating IP20
Ambient Operating Temperature 0 to 60°C (in a non-condensing environment)
Storage Temperature -40 to 80°C (in a non-condensing environment)
Electrical Connection Type Screw-type terminals
Connection To Programmable Logic Controller SUB-D 25
Tightening Torque 0.6 Newton-meter
Compliance Standards DNV, EAC, GL, UL, and CSA-certified
Rated Insulation Voltage 2,000 volts
Compatibility Modicon Premium TSXAEY420 and TSXASY410 programmable logic controllers
Electrostatic Discharge Resistance 4 to 8 kilovolts
Radiated Fields Resistance 10 volts per meter
Range of Product
Modicon ABE7
Product or Component Type
Connection sub-base for counter and analogue channels
Number of Channels
4
Connections – terminals
Screw type terminals, 1 x 0.09…1 x 1.5 mm² AWG 28…AWG 16) flexible with cable end
Screw type terminals, 1 x 0.14…1 x 2.5 mm² AWG 26…AWG 12) solid
Screw type terminals, 1 x 0.14…1 x 2.5 mm² AWG 26…AWG 14) flexible without cable end
Screw type terminals, 2 x 0.09…2 x 0.75 mm² AWG 28…AWG 20) flexible with cable end
Screw type terminals, 2 x 0.2…2 x 2.5 mm² AWG 24…AWG 14) solid
Complementary
Function of module
Analogue output current Premium
Analogue output voltage Premium
Product compatibility
Premium TSXAEY420
Premium TSXASY410
Connection to PLC
SUB-D 25
Fixing mode
By clips (35 mm symmetrical DIN rail)
By screws (solid plate with fixing kit)
[Ui] rated insulation voltage
2000 V terminals/mounting rails
Installation category
II IEC 60664-1
Tightening torque
5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm
Net Weight
0.40 lb(US) (0.18 kg)
Environment
Product Certifications
DNV
GL
CSA
UL
EAC
IP degree of protection
IP20 conforming to IEC 60529
Protective treatment
TC
Resistance to incandescent wire
1382 °F (750 °C) 30 s IEC 60695-2-11
Shock resistance
15 gn 11 ms IEC 60068-2-27
Vibration resistance
2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6
Resistance to electrostatic discharge
4 kV contact) level 3 IEC 61000-4-2
8 kV air) level 3 IEC 61000-4-2
Resistance to radiated fields
9.1 V/m (10 V/m) 26000000…1000000000 Hz)IEC 61000-4-3 level 3
Resistance to fast transients
2 kV level 3 IEC 61000-4-4
Ambient air temperature for operation
32…140 °F (0…60 °C) IEC 61131-2
Ambient air temperature for storage
-40…176 °F (-40…80 °C) IEC 61131-2
Pollution degree
2 IEC 60664-1
Ordering and shipping details
Category
US10CP222375
Discount Schedule
0CP2
GTIN
3389110836196
Returnability
Yes
Country of origin
LV
Description
The ABE7CPA21 connection sub-base is manufactured by Schneider Electric and belongs to the Modicon series. This sub-base is structured with four channels, elegantly engineered for analog and counter connections, thereby enhancing modularity in control systems. Designed specifically for use with Modicon Premium programmable logic controllers such as TSXAEY420 and TSXASY410, it provides seamless integration.

The sub-base is encased in an IP20-rated enclosure, ensuring protection against solid objects larger than 12 mm, making it suitable for indoor installations. It performs effectively within an operational temperature span of 0°C to 60°C in non-condensing environments, while it can safely be stored at temperatures ranging from -40°C to 80°C.

Electrical connections are established through screw-type terminals, allowing secure and robust attachments. With a tightening torque requirement of 0.6 Newton-meters for terminal connections, it guarantees a stable electrical interface. The unit’s total weight is approximately 0.4 pounds (0.18 kilograms), making it relatively lightweight.

This component complies with numerous industrial standards hence is certified by DNV, EAC, GL, UL, and CSA. Additionally, it has a rated insulation voltage of 2,000 volts, ensuring safe operation under various electrical stresses. Furthermore, it is equipped to resist electrostatic discharge between 4 to 8 kilovolts and withstands radiated fields up to 10 volts per meter. Such features make the ABE7CPA21 a reliable choice for efficient control system integration.
