Technical specifications for 22D-D017N104

Description

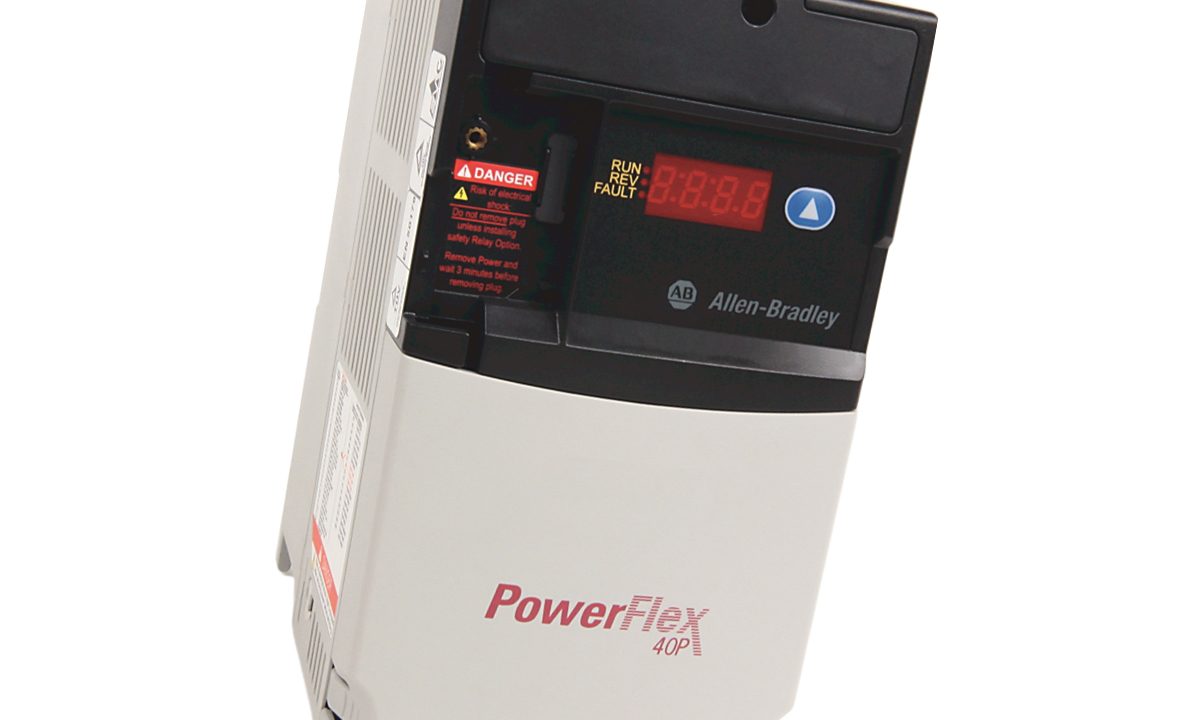

The Allen-Bradley/Rockwell Automation 22D-D017N104 drive is a PowerFlex 40P series AC drive. It has a 3-phase input voltage rating of 480 Volts AC with an operating frequency range of 50 to 60 Hertz. The 22D-D017N104 AC drive has a Size C frame and an open enclosure with an IP 20 environmental protection rating, but no filter. Its rated output current is 17 Amps. The 22D-D017N104 AC Technical specifications for 22D-D017N104
Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 22D-D017N104
Product Line Powerflex 40P
Amperage 17.0 A
Phase Three-Phase
Enclosure Open NEMA Type -Panel Mount (IP20)
Input Power 480 Volts AC
Horsepower 10 Horsepower
Filter No CE Compliant Filter
Type Standard
Frame Size C
UPC 820919654237 Description
The 22D-D017N104, also known as the PowerFlex 40P, is an AC drive that is used to address the requirements of closed-loop control in a cost-effective and compact design. It is made on the platform of popular Powerflex 40 and comes with the same options and accessories. The PowerFlex 40 P comes in 0.4 to 11 kW ratings, which mean 0.5 to 15 HP powers and under voltage ratings of 240, 480 and 600 Volts. The 22D-D017N104 AC drive is used to control the speed of applications such as diverters, synthetic fiber spinning machines, drafting machines, ring spinning machines, smart conveyors, packaging machines, and palletizers.

The 22D-D017N104 AC drives are easy to use and created to meet the global OEM and end-user demands of flexibility and saving space. The PowerFlex 40 P AC drive can be used for programming with the help of an external HIM or DSI connection and computer programming tool. This drive can easily be reset and the display parameters easily changed, using the integral reset and display button. A four (4) digit display with ten (1)0 LED indicators is contained in the 22D-D017N104 AC drive, which shows information and drive statuses. The drive comes with various control functions including a timer function, counter function, basic logic, velocity, and basic step logic functions. The 22D-D017N104 can be connected to a device that takes the place of an RTU master and can support 16, 03, or 06 RTU commands. The integral RS 485 communication port is given in order to use the drive with multi-drop networks. The user can also improve the performance of the device using integral communication cards such as DeviceNet, Ethernet /IP, PROFIBUS DP, LonWorks, and Control Net.
