Technical specifications for 1790D-T0W6

Description

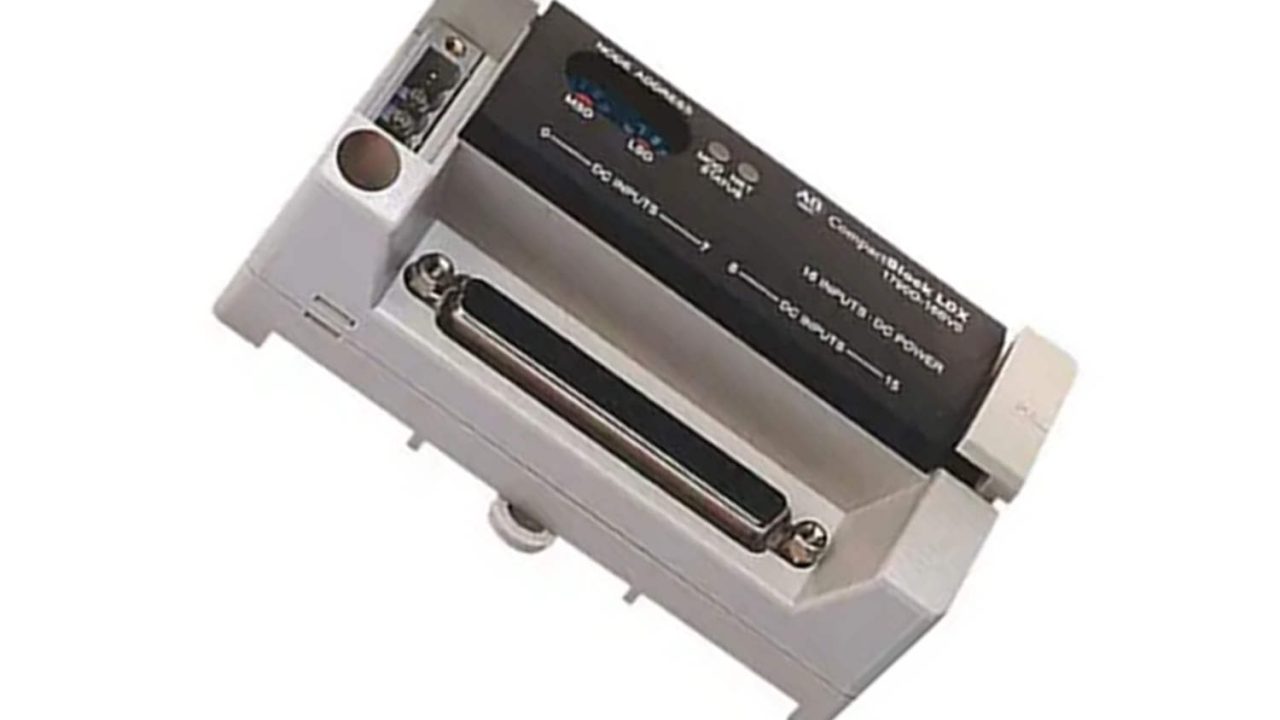

6 Relay Output Base Module (1790D-T0W6)

Attribute Value
Relay type Form A, normally open
Single pole, single throw
Output voltage range (load
dependent)
5…24V dc @ 2.0 A resistive
30V ac @ 2.0 A resistive
125V ac @ 2.0 A resistive
250V ac @ 2.0 A resistive
Output current rating (at
rated power)
2.0 A @ 5…24V dc resistive
2.0 A @ 30V dc resistive
Load, min 100 µA, 100mV dc per input
On-state voltage drop, max 0.5V @ 2.0 A, resistive load, 24V dc
Initial contact resistance 30 MΩ
Expected contact life 300 Kcycles resistive
100 Kcycles inductive
Off-state leakage, max 1.5 mA max
Output delay time Off to On: 10 ms max, On to Off: 10 ms max
Indicators 6 green status
Common type 1 point/1COM
General Specifications
DeviceNet power Supply voltage – 24V dc nom
Voltage range – 11…28.8V dc
Power dissipation – 1.2 W max @ 28.8V dc
Field power Supply voltage – 24V dc nom
Voltage range – 19.2…28.8V dc
Power dissipation – 10 mA @ 28.8V dc per
channel
Isolation I/O to logic: photocoupler isolation
Isolation voltage: 1250V ac rms
Wiring Terminal block (M3.0)
– screw torque: 7 lb-in max (use copper or
copper-clad aluminum conductors)
