Allen-Bradley · I/O & Function Modules

Technical specifications for 1790-T16BV0X

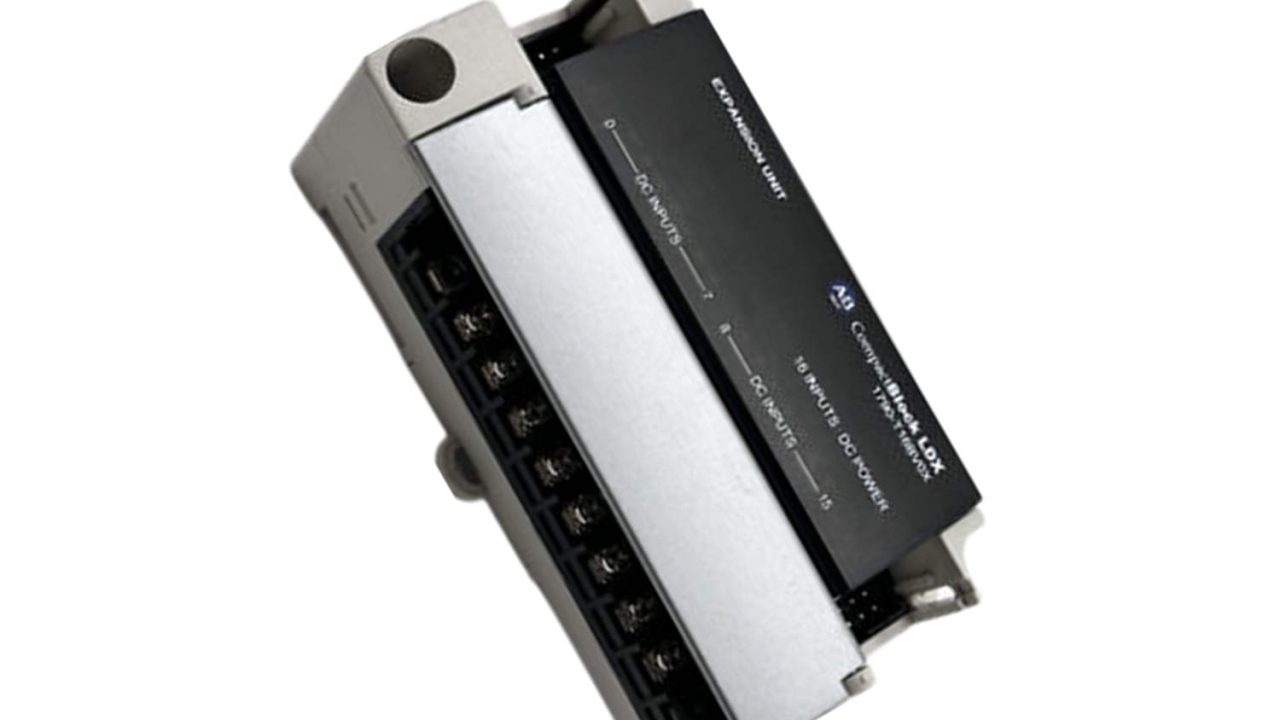

Manufacturer: Allen-Bradley Part Number: 1790-T16BV0X

24V dc 16 Universal Input Base and Expansion

12-month warranty
New Surplus
Available on request

Availability & pricing

Condition	Price	Stock / lead time	Action
New Surplus	On request	Available on request

Description

24V dc 16 Universal Input Base and Expansion
Modules 1790-T16BV0X

Attribute Value
Inputs per module 16 points, sinking or sourcing
On-state voltage 9.6V dc min, 24V dc nom, 28.8V dc max
Off-state voltage 5.0V dc max
On-state current 8 mA max per channel @ 28.8V dc
Input impedance, nom 4.8 KΩ
Indicators 16 green input status
Common type 8 points/8COM (non-polarity)
General Specifications
DeviceNet power – base
module
Supply voltage – 24V dc nom
Voltage range – 11…28.8V dc
Power dissipation – 1.2 W max @ 28.8V dc
Isolation I/O to logic: photocoupler isolation
Isolation voltage: 1250V ac rms
DeviceNet to logic: nonisolated
DeviceNet power: nonisolated
Wiring Terminal block (M3.0)
– screw torque: 7 lb-in max (use copper or
copper-clad aluminum conductors)

Frequently asked questions

What is the 1790-T16BV0X?

Allen-Bradley 1790-T16BV0X is an industrial automation component we supply from surplus and refurbished stock. Confirm the exact configuration, condition and lead time with our team before purchase.

Is the 1790-T16BV0X in stock, and what is the lead time?

We list the 1790-T16BV0X as in stock in New Surplus condition. Request a quote for current availability, pricing and confirmed lead time — most items ship within 1–3 business days.

Do you provide a datasheet for the 1790-T16BV0X?

Where available, the product page links the original manufacturer datasheet (PDF). Use the request-a-quote form to receive the full documentation pack and compliance information.

Can the 1790-T16BV0X be cross-referenced to an equivalent?

Many automation parts have equivalents or legacy replacements. Send us the 1790-T16BV0X together with your application details and we will confirm compatibility and alternatives.
