Keyence · LR-W series · Sensors & Encoders

Technical specifications for LR-WF10

Manufacturer: Keyence Part Number: LR-WF10

Self-contained full-spectrum (white LED) color sensor, fiber type, cable type.

12-month warranty
New Surplus
Available on request

Availability & pricing

Condition	Price	Stock / lead time	Action
New Surplus	On request	Available on request

Description

Model: LR-WF10
Brand: Keyence
Series: LR-W series

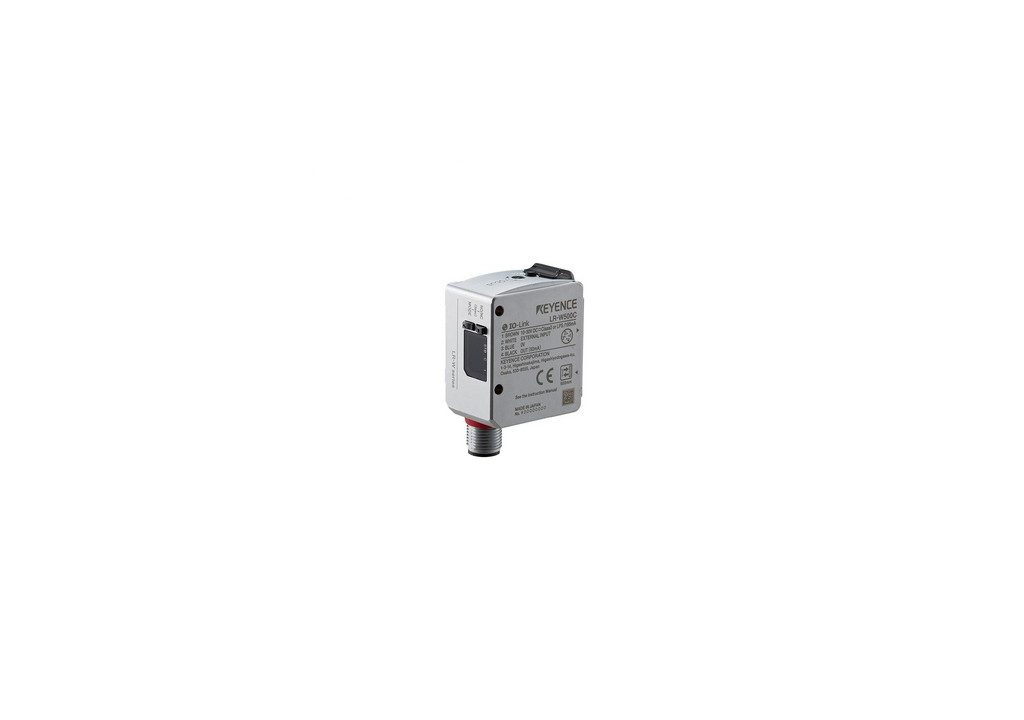

Self-contained full-spectrum (white LED) color sensor, fiber type, cable type.

── Hardware ──
Sensor type: Self-contained full-spectrum (white LED) color/photoelectric sensor
Type: Fiber type, 2 m cable type
Detecting distance: Based on attached fiber head
Light source: White LED
Min. spot diameter: Based on attached fiber head
Response time: 250 µs / 1 ms / 10 ms / 100 ms / 500 ms selectable
Timer: OFF / ON-delay / OFF-delay / one-shot

── Communication ──
Built-in ports: None
Protocols: IO-Link v1.1 / COM2 (38.4 kbps) on connector-type models
Communication expansion: None

── Electrical ──
Supply voltage: 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Power consumption: Current consumption 50 mA or less (no load) at 24 VDC; 90 mA or less (no load) at 12 VDC
Output type: NPN open collector / PNP open collector selectable, 30 VDC or less, 50 mA or less, residual voltage 2 V or less, N.O./N.C. selectable
External input: Tuning / transmission OFF selectable

── Environmental ──
Operating temperature: -20 to +45 °C (No freezing)
Storage temperature: Not available
Relative humidity: 35 to 85 % RH (No condensation)
Protection rating: IP65 (IEC60529)

── Physical ──
Dimensions (H×W×D): Not available
Weight: Approx. 150 g (including cable)

── Lifecycle ──
Active; official Keyence production status confirmed via product/spec page (Last verified: 2026-09)
