Technical specifications for IV-H150MA

Description

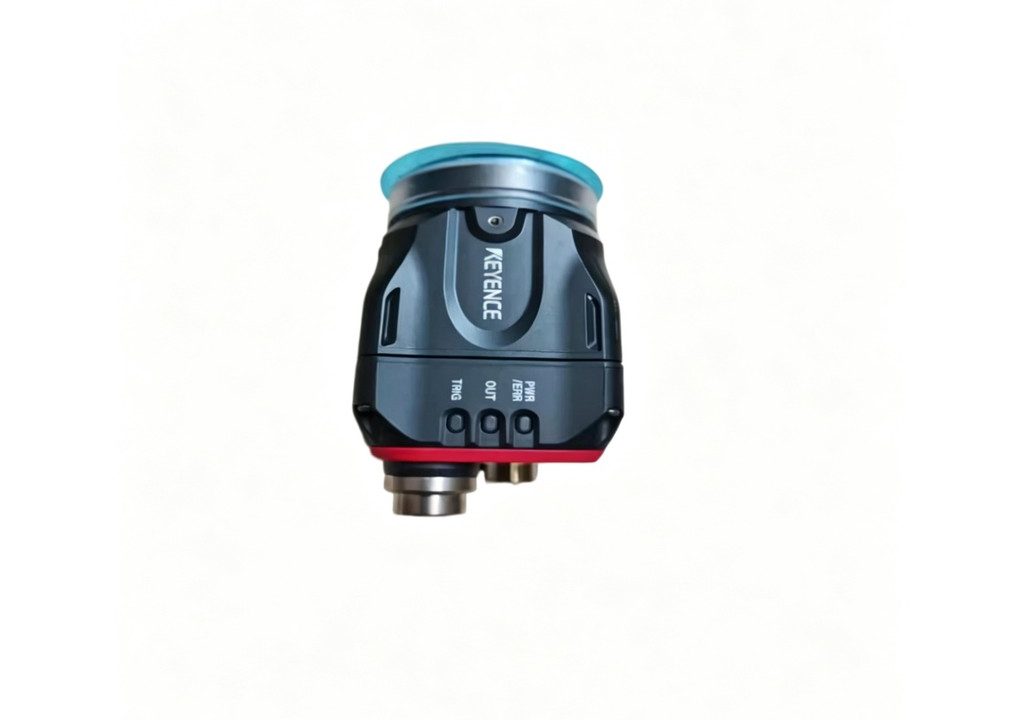

Model: IV-H150MA
Brand: Keyence
Series: IV Series

Integrated vision sensor camera, short range, monochrome type.

── Hardware ──
Type: Sensor, Short range
Installed distance: 50 to 150 mm
View: Installed distance 50 mm: 12 (H) x 9 (V) mm to installed distance 150 mm: 36 (H) x 27 (V) mm
Image sensor: 1/3 inch monochrome CMOS, 752 (H) x 480 (V) pixels
Focus adjustment: Auto
Exposure time: 1/20 to 1/25,000
Illumination: Red LED
Lighting method: Pulse/DC lighting switchable
Tools: Shape Detection, Color Area, Area, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment
Number of tools: Detection tools: 16, position adjustment tool: 1
Switch settings (programs): 32 programs

── Communication ──
Built-in ports: M12 4-pin connector (100BASE-TX/10BASE-T)
Protocols: FTP client, EtherNet/IP, PROFINET
Communication expansion: None

── Electrical ──
Supply voltage: 24 VDC +/-10% (including ripple)
Power consumption: 0.6 A or less
Output type: Open collector output, NPN/PNP switchable, N.O./N.C. switchable, maximum rating 26.4 V 50 mA
Number of inputs: 6 (IN1 to IN6)
Number of outputs: 4 (OUT1 to OUT4)

── Environmental ──
Operating temperature: 0 to +50°C (no freezing)
Relative humidity: 35 to 85% RH (no condensation)
Protection rating: IP67 (except when polarized filter attachment OP-87436/OP-87437 is mounted)
Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each of X/Y/Z directions (except when dome attachment IV-D10 is mounted)
Shock resistance: 500 m/s^2, 3 times in each of 6 directions (except when dome attachment IV-D10 is mounted)

── Physical ──
Dimensions (H×W×D): Not available
Material: Main unit case: Aluminium die-casting. Packing: NBR. Front cover: Acrylic. Mounting adapter: POM.
Weight: Approx. 270 g

── Lifecycle ──
Active; official Keyence production status confirmed via product/spec page (Last verified: 2026-09)
