Technical specifications for 2711P-T7C1D6

Description

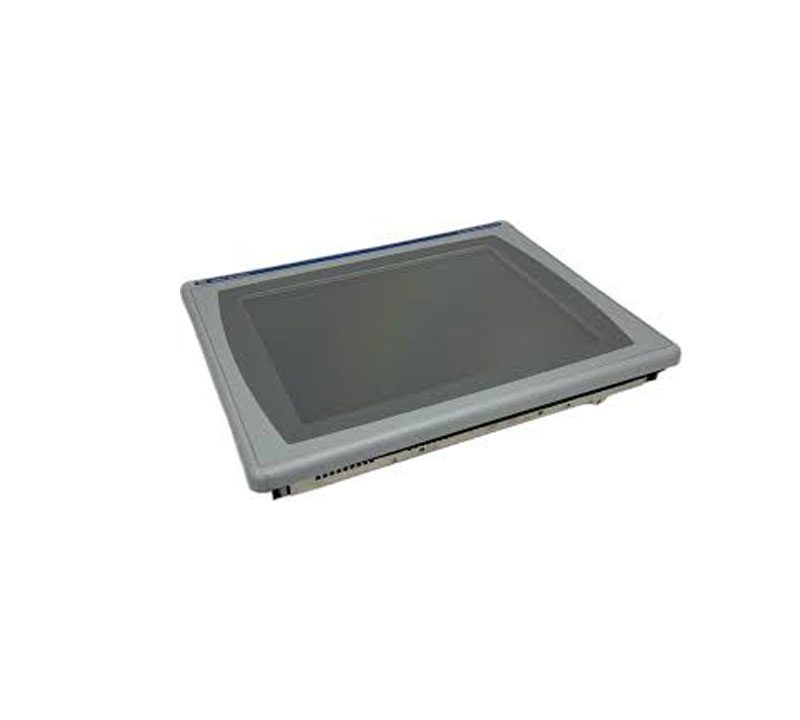

The 2711P-T7C1D6 from Allen Bradley is an operator terminal designed for industrial applications. Featuring a 6.5-inch display, it allows for both touch input and graphical interaction, making it user-friendly. Technical specifications for 2711P-T7C1D6
Manufacturer Allen Bradley
Series Panelview Plus 700
Part Number 2711P-T7C1D6
Product Type Operator Terminal
Communication Option Remote I/O
Color Yes
Input Type Touchscreen
Memory 128 MB
Power Type DC
Communication Ports Ethernet and RS-232 port
Display Size 6.5 inches
Display Area 132 x 99 mm
Resolution 640 x 480
Touch Interface Analog resistive
Rated Input Power 24 VDC
Operational Input Power 18-32 VDC Description
The 2711P-T7C1D6 from the Allen Bradley Panelview Plus 700 series is an operator terminal that provides a touchscreen interface. The display measures 6.5 inches diagonally, with a resolution of 640 x 480 pixels, offering clear visuals for user interaction. The dimensions of the display area are 132 x 99 mm, ensuring adequate space for various graphical elements. Touch interactions are facilitated by an analog resistive interface that allows for efficient control.

The device is equipped with 128 MB of internal memory, making it capable of holding multiple applications and graphics. It is powered by a DC power supply, rated at 24 VDC, with an operational power range between 18 to 32 VDC. This flexibility in input power allows for adaptability in various setups.

In terms of communication options, the terminal supports Remote I/O functionality. It comes with both Ethernet and RS-232 ports, enabling easy integration with other devices and systems in an industrial environment. The vibrant color display enhances the usability of the terminal, making it suitable for monitoring and controlling processes effectively.
