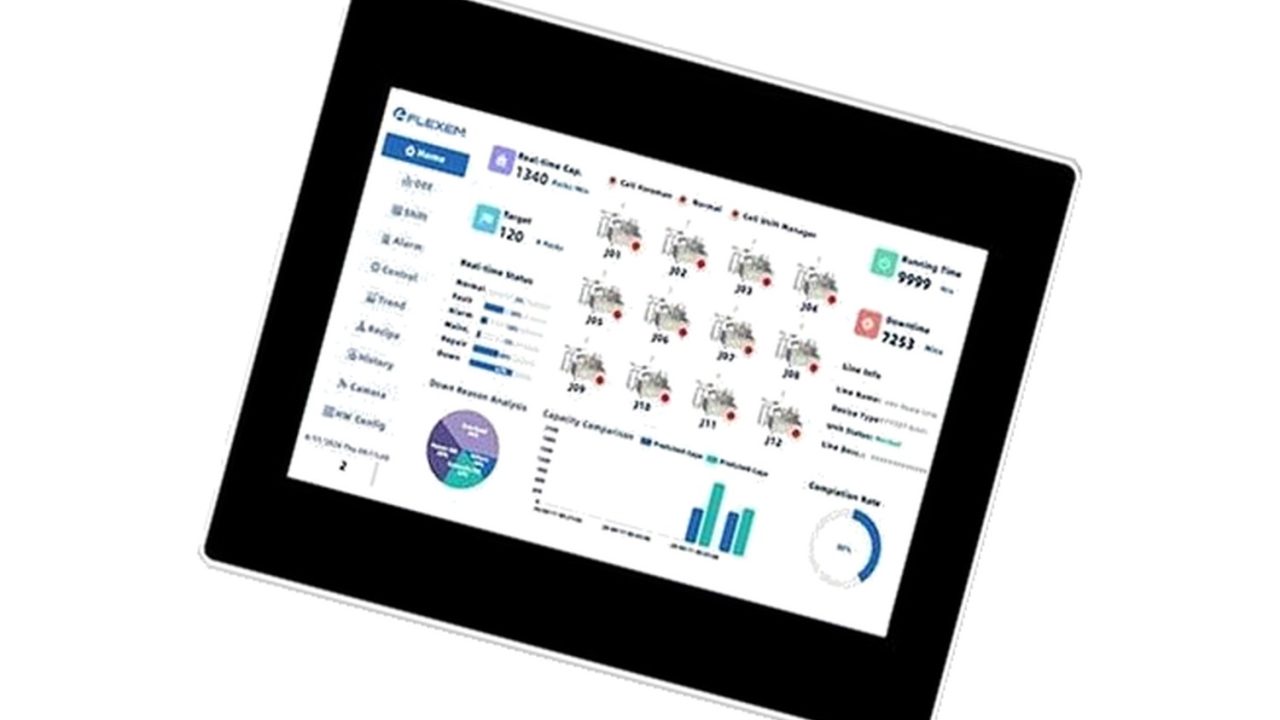

Technical specifications for FPad712

Description

Model: FPad712
Brand: Flexem
Series: FPad Series

12.1-inch 16:10 web-based HMI panel with 1280×800 resolution, quad-A72/quad-A53 CPU, dual Gigabit Ethernet, and Linux OS.

── Hardware ──
CPU: 4×Cortex-A72 + 4×Cortex-A53, up to 2.2 GHz
Memory: 2 GB DDR4 + 16 GB eMMC
OS: Linux
SD card slot: Not available
Real-time clock: Built-in
Programming software: FStudio Unified

── Screen ──
Display: 12.1″ 16:10 TFT LCD
Resolution: 1280×800
Colors: 24-bit
Brightness: 400 cd/m²
Viewing angles (T/B/L/R): 80°/80°/80°/80°
Touch panel: 4-wire industrial resistive touchscreen
Backlight: LED
LCD lifetime: 50,000 hours

── Communication ──
Built-in ports: 2×Gigabit RJ45 (10/100/1000 Mbps auto-adaptive); 2×USB 3.0 Type-A; COM1 (RS232/RS485/RS422); COM2 (RS485/RS422); COM3 (RS232)
Protocols: Not published in official datasheet
Communication expansion: None

── I/O ──
None (HMI operating terminal, no built-in discrete I/O)

── Electrical ──
Supply voltage: DC 24V nominal, operating range DC 18–28V
Power consumption: <15W maximum
Power protection: Lightning surge protection
Power interruption tolerance: <5 ms
EMC: EN61000-6-2:2019, EN61000-6-4:2019, RoHS; lightning surge ±1 kV, group pulse ±2 kV; electrostatic contact 4 kV, air discharge 8 kV

── Environmental ──
Operating temperature: -10 to 60 °C
Storage temperature: -20 to 70 °C
Relative humidity: 10 to 90 %RH (non-condensing)
Protection rating: Front IP65, rear IP20
Vibration endurance: 10–25 Hz (X/Y/Z direction, 2G/30 min)
UV resistance: Not for use in high UV environments
Cooling: Natural convection

── Physical ──
Dimensions (H×W×D): 228×313×38 mm
Panel cutout (W×H): 295×217 mm
Weight: ~2.30 kg (about 2300 g, supplier-reported)
Enclosure: Non-ferrous alloy
Installation: Flush mount / VESA mount

── Lifecycle ──
Current Flexem FPad series product line; official product page active as of 2026-09 (Last verified: 2026-09)
