Technical specifications for DL50-2B215252
Retro-reflective measurement up to 50 m on reflective tape Advanced HDDM™ time-of-flight technology offering high measuring rate up to 3 kHz Dual interface: Simultaneous digital push-pull switching / IO-Link V1.1 and analog output Extended operating temperature range -40 °C to +65 °C without requiring internal heater Dual IP65 and IP67 enclosure protection rating for harsh industrial environments
- 12-month warranty
- New Surplus
- Available on request
Availability & pricing
| Condition | Price | Stock / lead time | Action |
|---|---|---|---|
| New Surplus | On request | Available on request |
Technical specifications
| General | Identification |
|---|---|
| Part Number | 1065662 |
| Product | Sub-Series / Family: Dx50-2 Next Generation Distance Sensor |
| Measurement Principle: HDDM™ | (High Definition Distance Measurement) Optical Time-of-Flight |
| Technical | & Optical Parameters |
| Measuring / Protective Range | 200 mm ... 50,000 mm (On Diamond Grade reflective tape) |
| Light Source: Visible | red laser diode (wavelength 658 nm; Class 2 per IEC 60825-1:2014) |
| Laser Class: Class | 2 (IEC 60825-1:2014, 658 nm, average power < 1 mW) |
| Response Time | 0.83 ms ... 75 ms (Configurable via speed settings) |
| Repeatability: ≥ | 0.5 mm ... 5 mm |
| Measurement Accuracy: Typ. ± | 7 mm |
| Interface | & Electrical Specifications |
| Supply Voltage: DC | 10 V ... 30 V (Reverse-polarity protected; Limit values; max. 8 A) |
| Power Consumption: ≤ | 2.1 W |
| Electrical Connection: Male | connector M12, 5-pin |
| Mechanical | & Environmental Specifications |
| Ambient | Temperature, Operation: -40 °C ... +65 °C |
| Ambient | Temperature, Storage: -40 °C ... +75 °C |
| Enclosure | Protection Rating: IP65, IP67 (EN 60529) |
| Physical Dimensions | (W x H x D): 36.2 mm x 67.3 mm x 58 mm |
| Housing Material: Zinc | die-cast (ZNAL4CU1) with acrylic glass (PMMA) optical window |
| Device Weight: Approx. | 235 g |
Description

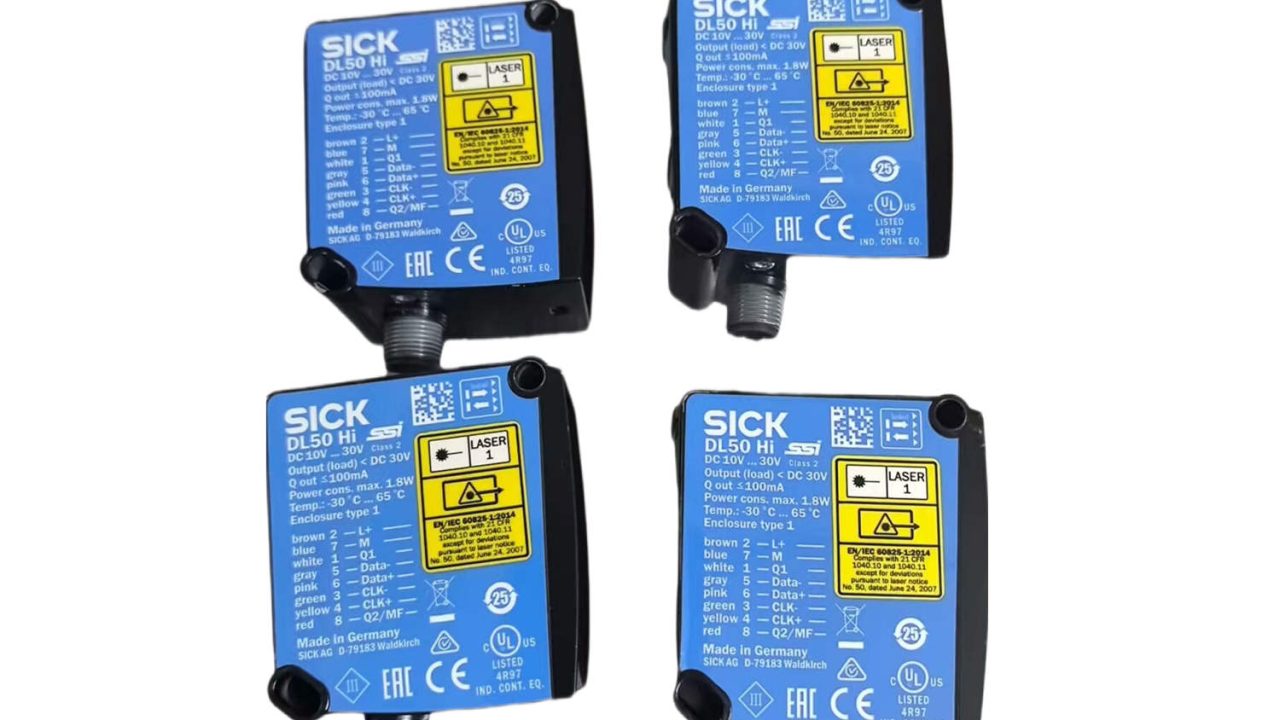

Product Model: DL50-2B215252
Product Brand: SICK
Product Series: Dx50
=== General Identification ===
• Part Number: 1065662
• Product Sub-Series / Family: Dx50-2 Next Generation Distance Sensor
• Measurement Principle: HDDM™ (High Definition Distance Measurement) Optical Time-of-Flight
=== Technical & Optical Parameters ===
• Measuring / Protective Range: 200 mm … 50,000 mm (On Diamond Grade reflective tape)
• Light Source: Visible red laser diode (wavelength 658 nm; Class 2 per IEC 60825-1:2014)
• Laser Class: Class 2 (IEC 60825-1:2014, 658 nm, average power < 1 mW)
• Response Time: 0.83 ms … 75 ms (Configurable via speed settings)
• Repeatability: ≥ 0.5 mm … 5 mm
• Measurement Accuracy: Typ. ± 7 mm
=== Interface & Electrical Specifications ===
• Output & Communication Interface: Digital Output Q1: 1x Push-Pull (PNP/NPN) / IO-Link V1.1; Analog Output QA: 1x Configurable (4 mA … 20 mA, ≤ 450 Ω / 0 V … 10 V, ≥ 50 kΩ, 16-bit); Multifunctional input (MF)
• Supply Voltage: DC 10 V … 30 V (Reverse-polarity protected; Limit values; max. 8 A)
• Power Consumption: ≤ 2.1 W
• Electrical Connection: Male connector M12, 5-pin
=== Mechanical & Environmental Specifications ===
• Ambient Temperature, Operation: -40 °C … +65 °C
• Ambient Temperature, Storage: -40 °C … +75 °C
• Enclosure Protection Rating: IP65, IP67 (EN 60529)
• Physical Dimensions (W x H x D): 36.2 mm x 67.3 mm x 58 mm
• Housing Material: Zinc die-cast (ZNAL4CU1) with acrylic glass (PMMA) optical window
• Device Weight: Approx. 235 g
=== Features & Functional Highlights ===
• Retro-reflective measurement up to 50 m on reflective tape
• Advanced HDDM™ time-of-flight technology offering high measuring rate up to 3 kHz
• Dual interface: Simultaneous digital push-pull switching / IO-Link V1.1 and analog output
• Extended operating temperature range -40 °C to +65 °C without requiring internal heater
• Dual IP65 and IP67 enclosure protection rating for harsh industrial environments
Frequently asked questions
What is the DL50-2B215252?
SICK DL50-2B215252 is an industrial automation component we supply from surplus and refurbished stock. Confirm the exact configuration, condition and lead time with our team before purchase.
Is the DL50-2B215252 in stock, and what is the lead time?
We list the DL50-2B215252 as in stock in New Surplus condition. Request a quote for current availability, pricing and confirmed lead time — most items ship within 1–3 business days.
Do you provide a datasheet for the DL50-2B215252?
Where available, the product page links the original manufacturer datasheet (PDF). Use the request-a-quote form to receive the full documentation pack and compliance information.
Can the DL50-2B215252 be cross-referenced to an equivalent?
Many automation parts have equivalents or legacy replacements. Send us the DL50-2B215252 together with your application details and we will confirm compatibility and alternatives.
