Technical specifications for 6SL3243-0BB30-1PA3

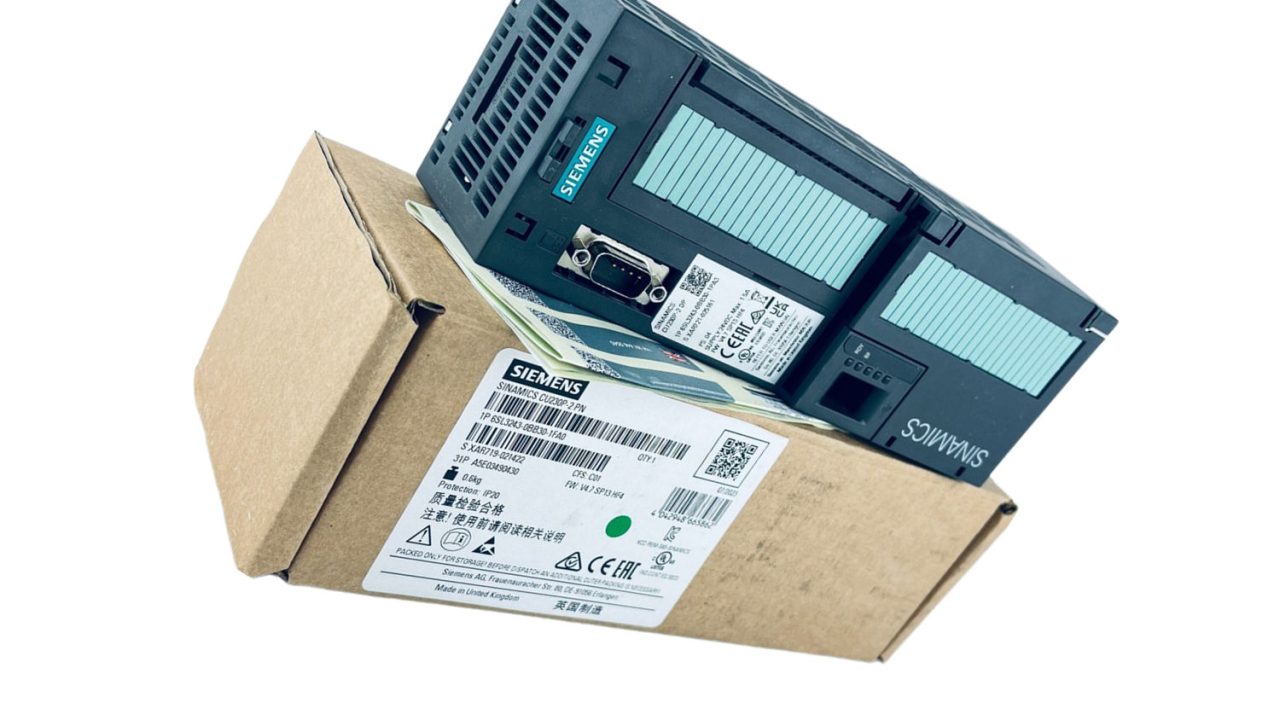

Data sheet for SINAMICS Control unit CU230P-2 DP
- 12-month warranty
- New Surplus
- Available on request
Availability & pricing
| Condition | Price | Stock / lead time | Action |
|---|---|---|---|
| New Surplus | On request | Available on request |
Description
Data sheet for SINAMICS Control unit CU230P-2 DP
Article No. : 6SL3243-0BB30-1PA3
Electrical data
Operating voltage via
The Power Module DC 24 V
External power supply DC 20 … 29 V
Max. power consumption 0.50 A
Power loss 5.50 W
Communication
Communication PROFIBUS DP
Inputs / outputs
Standard digital inputs
Number 6
Switching level: 0→1 11 V
Switching level: 1→0 5 V
Fail-safe digital inputs
Number 0 (No fail-safe inputs available)
Digital outputs
as relay changer
Number 2
Output (inductive load) DC 250 V, 2 A
Output (resistive load) DC 30 V, 0.5 A
as relay make contact
Number 1
Output (resistive load) DC 30 V, 0.5 A
Analog / digital inputs
Number 2 (Differential input)
Analog outputs
Number 2 (Non-isolated output)
Closed-loop control techniques
V/f linear / square-law / parameterizable Yes
V/f with flux current control (FCC) Yes
V/f ECO linear / square-law Yes
Sensorless vector control Yes
Vector control, with sensor No
Encoderless torque control Yes
Torque control, with encoder No
Ambient conditions
Ambient temperature
Operation -10 … 60 °C (14 … 140 °F)
Storage -40 … 70 °C (-40 … 158 °F)
Relative humidity
Max. operation 95 %
Connections
Signal cable
Conductor cross-section 0.15 … 1.50 mm²
(AWG 24 … AWG 16)
Mechanical data
Degree of protection IP20 / UL open type
Net weight 0.61 kg (1.34 lb)
Dimensions
Width 73.0 mm (2.87 in)
Height 199.0 mm (7.83 in)
Depth 65.5 mm (2.59 in)
Standards
Compliance with standards CE, UL, cUL, RCM, SEMI F47
CE marking Low-voltage directive 2014/35/EC
