Bently Nevada · 330701&330702&707&708 · Proximity Probes & Sensors

Technical specifications for 330701-00-24-10-02-05

Manufacturer: Bently Nevada Part Number: 330701-00-24-10-02-05

Manufacturer : Bently Nevada

12-month warranty
New Surplus
Available on request

Availability & pricing

Condition	Price	Stock / lead time	Action
New Surplus	On request	Available on request

Description

Manufacturer : Bently Nevada
Product No. :330701-00-24-10-02-05
Product type : 3300 XL 11 mm Proximity Probes
Made in U.S.A

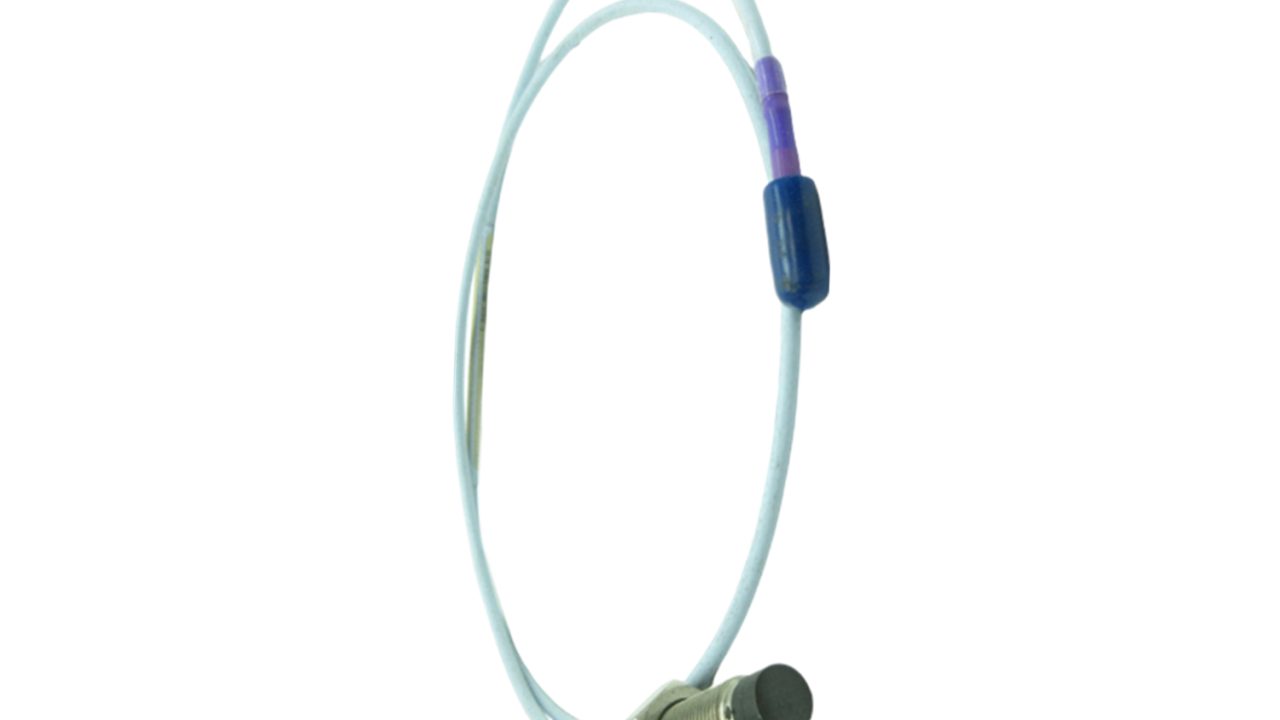

3300 XL 11 mm Probe, 1/2-20 UNF thread, without armor
Unthreaded Length Option : 00 = 0 in
Overall Case Length Option :24 =2.4 in
Total Length Option : 10 = 1.0 meter (3.3 feet)
Connector and Cable-Type Option : 02= Miniature coaxial ClickLoc
connector, standard cable
Agency Approval Option : 05 = Multiple Approvals
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 304 stainless steel (SST).
Probe Cable Specifications: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 1, 5 or 9 metres.
Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F)
Probe Pressure: 3300 XL probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton* O-ring. Probes are not pressure tested prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application
Shipping weight : 0.17kg

Probe dc Resistance
Probe
Length (m) 1.0
Resistance from the Center
Conductor to the Outer
Conductor (RPROBE) (ohms)
5.9 ± 0.5

Probe Case Thread 1/2-20
Maximum Length of Thread Engagement 0.750 in

Probe Case Torque
Maximum
Rated Recommended
1/2-20 and 5/8-
18 probe cases
45.2 N•m
(400 in•lb)
15.2 N•m
(133 in•lb)

Probe Tip
Material Polyphenylene sulfide (PPS).
Probe Case
Material AISI 304 stainless steel (SST).
Probe Cable
Specification
75 Ω triaxial, fluoroethylene
propylene (FEP) insulated
probe cable in the following
total probe lengths: 1, 5 or 9
meters.

Connector-to-connector torque
Recommended
torque Finger tight
Maximum
torque 0.565 N•m (5 in•lb)
Minimum Bend
Radius (with or
without SST
armor)
25.4 mm (1.0 in)

Probe Case Thread M16x1.5
Maximum Length of Thread Engagement 24 mm

Probe Temperature Range
Operating and
Storage
Temperature
-52°C to +177°C (-62°F to
+351°F)
Exposing the probe to temperatures
below -34°C (30°F) may cause
premature failure of the pressure
seal.
